heaterSteam titanium
제품 설명

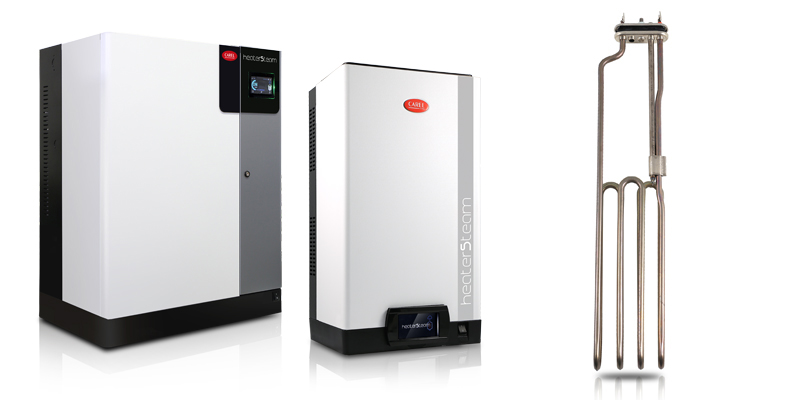

heaterSteam titanium is a heater humidifier that stands out not only for its performance in terms of precision and continuous modulation in humidity control, but also for having achieved unprecedented levels of reliability.
The titanium heaters - a world exclusive - are designed to operate with extremely aggressive water, such as water demineralised/deionised water with a conductivity of less than 1 µS/cm, and softened water down to 0° fH.
The reliability of titanium, protection against overheating (heaterSteam is the only humidifier on the market whose heaters come with temperature probes) and the rotation and redundancy functions make the Carel solution ideal for applications in which service continuity is crucial (cleanrooms, hospitals and museums): in fact, maintenance can be carried out on one unit while the other humidifiers in the system continue operating, automatically making up for lost production.
Exceptional performance: heaterSteam titanium is the response to the need for precise relative humidity control, being able to respond to the humidity request with an accuracy of ± 1%. Modulation of production capacity from 0 to 100% and the possibility to preheat the water inside the cylinder mean heaterSteam is ready to respond promptly to variations in humidity request.

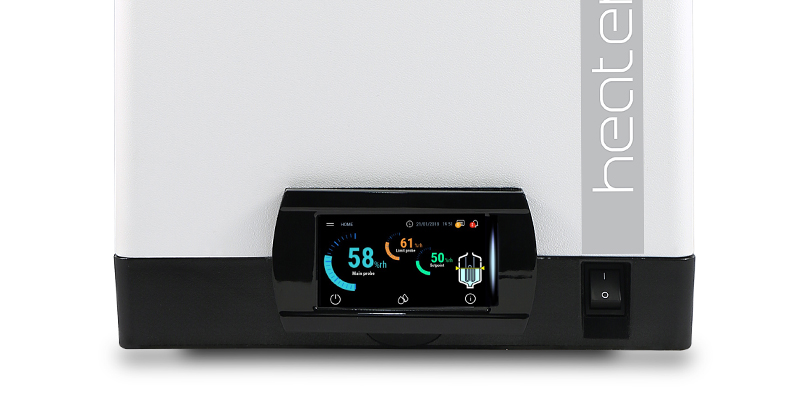

The new-generation electronic controller makes heaterSteam titanium even more unique. Modbus and BACnet communication protocols are available as standard, on both the BMS serial and Ethernet ports: no additional electronic cards are needed. The Ethernet connection can also be exploited to access the integrated web server via the local network. This means the unit can be configured and monitored directly from a web browser on a PC or tablet.-
제품 특징
heaterSteam titanium represents the new frontier in cutting-edge technology applied to air humidification. Its features make it the natural solution for mission-critical applications:
- very high precision: ±1% around the relative humidity set point
- absolute reliability: titanium heaters, redundancy and rotation functions, anti-foam system
- connectivity: integrated BACnet and Modbus, USB port, webserver, Wi-Fi probe capability
문서
Technical
-
BIM files
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 BIM files heaterSteam 설명 언어 ALL 날짜 11/03/2020 배포 R0 -
Manuals
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +0300087IT 설명 heaterSteam 4 - UR Umidificatore a resistenze elettriche 언어 ITA 날짜 24/02/2023 배포 1.6 코드 +0300087EN 설명 heaterSteam 4 - UR Electric resistance humidifier 언어 ENG 날짜 24/02/2023 배포 1.6 코드 +0300087FR 설명 heaterSteam 4 - UR Humidifi cateur à résistances électriques 언어 FRE 날짜 24/02/2023 배포 1.6 코드 +0300087DE 설명 heaterSteam 4 - UR Befeuchter mit elektrischen Heizelementen 언어 GER 날짜 24/02/2023 배포 1.6 코드 +0300087ES 설명 heaterSteam 4 - UR Humidifi cador por resistencias eléctricas 언어 SPA 날짜 24/02/2023 배포 1.6 코드 +0300087SV 설명 heaterSteam 4 - UR Befuktare med värmeelement 언어 SWE 날짜 24/02/2023 배포 1.6 코드 +0300087RU 설명 heaterSteam 4 - UR Электрические изотермические увлажнители 언어 RUS 날짜 24/02/2023 배포 1.6 코드 +0300087FI 설명 heaterSteam 4 - UR Vastuskostutin 언어 FIN 날짜 24/02/2023 배포 1.6 코드 +0300087PT 설명 heaterSteam 4 - UR Umidificador com resistências elétricas 언어 POR 날짜 24/02/2023 배포 1.6 코드 +0300087NL 설명 heaterSteam 4 - UR Elektrische weerstand-luchtbevochtiger 언어 SWE 날짜 24/02/2023 배포 1.6 코드 +0300087CS 설명 heaterSteam 4 – UR Elektrický odporový zvlhčovač 언어 CZE 날짜 24/02/2023 배포 1.6 코드 +0300087ZH 설명 heaterSteam 4 - UR 언어 CHI 날짜 31/05/2018 배포 1.0 코드 +0300080DE 설명 heaterSteam - UR Befeuchter mit elektrischen Heizelementen 언어 GER 날짜 05/02/2018 배포 1.4 코드 +0300080EN 설명 heaterSteam - UR Electric resistance humidifier 언어 ENG 날짜 05/02/2018 배포 1.4 코드 +0300080ES 설명 heaterSteam - UR Humidificador por resistencias eléctricas 언어 SPA 날짜 05/02/2018 배포 1.4 코드 +0300080FR 설명 heaterSteam - UR Humidificateur à résistances électriques 언어 FRE 날짜 05/02/2018 배포 1.4 코드 +0300080IT 설명 heaterSteam - UR Umidificatore a resistenze elettriche 언어 ITA 날짜 05/02/2018 배포 1.4 코드 +0300080RU 설명 heaterSteam - UR Электрические изотермические увлажнители 언어 RUS 날짜 05/02/2018 배포 1.4 코드 +0300080FI 설명 heaterSteam - UR Vastuskostutin 언어 FIN 날짜 05/02/2018 배포 1.4 코드 +0300080SV 설명 언어 SWE 날짜 05/02/2018 배포 1.4 -
Technical Leaflets
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +050003645 설명 Ground support kit for humidifiers isothermal / Kit di supporto a terra per umidificatori isotermici 언어 ENG FRE GER ITA SPA 날짜 15/06/2023 배포 1.0 -
Tender Texts
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 heaterSteam UR titanium _ES 설명 언어 SPA 날짜 30/04/2021 배포 R0 코드 heaterSteam UR titanium _DE 설명 언어 GER 날짜 30/04/2021 배포 R0 코드 heaterSteam UR titanium_EN 설명 언어 ENG 날짜 30/04/2021 배포 R0 코드 heaterSteam UR titanium_ ITA 설명 언어 ITA 날짜 29/04/2021 배포 R0 코드 heaterSteam UR titanium _FR 설명 언어 FRE 날짜 29/04/2021 배포 R0
Commercial
-
Brochure
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +3000224FR 설명 Educational - Programme de formation CAREL pour une utilisation optimale des technologies et des systèmes dans les applications HVAC/R 언어 FRE 날짜 15/12/2023 배포 2.0 코드 +3000109DE 설명 heaterSteam Unvergleichliche Präzision und Zuverlässigkeit 언어 GER 날짜 27/02/2019 배포 2.1 코드 +3000109EN 설명 heaterSteam unprecedented precision and reliability 언어 ENG 날짜 27/02/2019 배포 2.1 코드 +3000109ES 설명 heaterSteam precisión y fiabilidad sin precedentes 언어 SPA 날짜 27/02/2019 배포 2.1 코드 +3000109IT 설명 heaterSteam precisione e affidabilità senza precedenti 언어 ITA 날짜 27/02/2019 배포 2.1 코드 +3000109RU 설명 heaterSteam беспрецедентно высокая точность и надежность 언어 RUS 날짜 27/02/2019 배포 2.1 코드 +3000109FR 설명 heaterSteam - l’excellence en fiabilité et précision 언어 FRE 날짜 27/02/2019 배포 2.1 코드 +3000109NL 설명 heaterSteam Ongeëvenaarde nauwkeurigheid en betrouwbaarheid 언어 DUT 날짜 27/02/2019 배포 2.1 코드 +3000109KO 설명 heaterSteam - 최고의 정밀도와 신뢰성 언어 KOR 날짜 27/02/2019 배포 2.1 코드 +3000109ZH 설명 heaterSteam 电热型加湿器 前所未有的精密控制与高可靠性 언어 CHI 날짜 20/06/2018 배포 2.0 -
Other related documentation
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +3000224IT 설명 Educational - Programma corsi di formazione CAREL per utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R 언어 ITA 날짜 13/03/2024 배포 2.1 코드 +3000224EN 설명 Educational - MakeCAREL’s program of training courses to make the best use of HVAC/R application technologies and systems 언어 ENG 날짜 13/03/2024 배포 2.1 코드 +800004030 설명 Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico 언어 ITA 날짜 05/04/2023 배포 1.2 코드 +800004031 설명 Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving 언어 ENG 날짜 05/04/2023 배포 1.2 코드 +800004036 설명 Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach 언어 POL 날짜 05/04/2023 배포 1.2 코드 +3000223IT 설명 Soluzione completa di servizi dedicata agli umidificatori CAREL 언어 ITA 날짜 21/12/2021 배포 1.0 코드 +3000223EN 설명 Complete services solution for CAREL humidifiers 언어 ENG 날짜 21/12/2021 배포 1.0 코드 +3000223ES 설명 Solución completa de servicios dedicada a los humidificadores CAREL 언어 SPA 날짜 21/12/2021 배포 1.0 코드 +3000223FR 설명 Solution complète de services pour les humidificateurs CAREL 언어 FRE 날짜 21/12/2021 배포 1.0 코드 +3000223PL 설명 Kompletne rozwiązanie serwisowe dla nawilżaczy CAREL 언어 POL 날짜 21/12/2021 배포 1.0 코드 +3000018IT 설명 L’umidità è importante! Umidificatori CAREL, una soluzione per ogni richiesta 언어 ITA 날짜 15/09/2020 배포 4.1 코드 +3000018DE 설명 Die Feuchte zählt! CAREL-Befeuchter, eine Lösung für jedes Anliegen. 언어 GER 날짜 15/09/2020 배포 4.1 코드 +3000018EN 설명 Humidity matters! CAREL humidifiers, a solution for every need 언어 ENG 날짜 15/09/2020 배포 4.1 코드 +3000018ES 설명 ¡La humedad es importante! Humidificadores CAREL, una solución para cada necesidad 언어 ENG SPA 날짜 15/09/2020 배포 4.1 코드 +3000018PL 설명 Nawilżanie ma znaczenie! Rozwiązania CAREL dla twoich potrzeb nawilżania 언어 POL 날짜 15/09/2020 배포 4.1
Images
-
High resolution images
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 PH18LUR305-heatersteam-range 설명 CAREL-heaterSteam process-Resistive steam humidifier-Isothermal Humidifier 언어 날짜 01/07/2021 배포 R.0
