boss micro panel

제품 설명

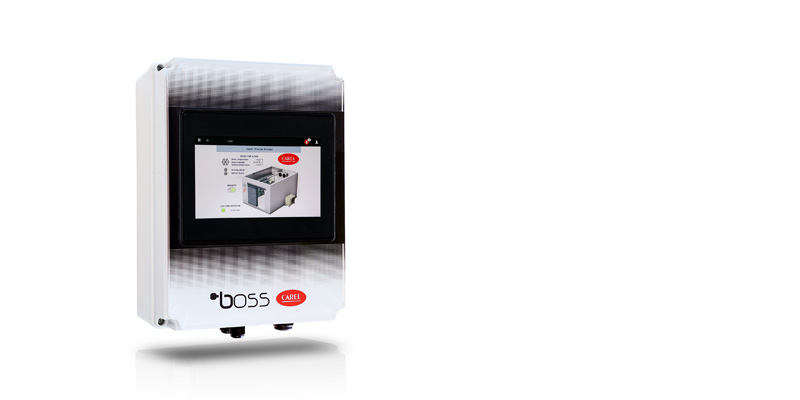

boss micro panel completes the boss family with a range of plug & play solutions for systems with up to 30 devices, including both the supervisor hardware and a built-in 7” touch display.
The solution is ready to be installed without needing any additional wiring or assembly, while the embedded Wi-Fi hotspot can be used to connect locally to the boss device for initial setup and other service activities, including from a PC or smartphone.
The built-in touch display makes boss micro panel especially interesting for all refrigeration and HVAC applications where the end user needs to monitor system status at a glance, and act promptly to resolve any critical issues.
boss micro panel is available in various versions for managing systems with up to 15 or 30 connected devices. The range also differs according to the types of built-in connectivity:
- Ethernet only;
- Ethernet + Wi-Fi;
- Ethernet + Wi-Fi + 4G.
The additional space available for a relay module, for example to be connected to an alarm signalling device, makes the solution even more flexible.
Part number table
Part number Name Supervisor hardware Connectivity BMBSTP7RP0 wired pocket boss-micro (15 devices, 150 varibles) Ethernet BMBSTP7FP0 Wi-Fi pocket Ethernet, Wi-Fi BMBSTP7MP0 Wi-Fi & 4G pocket Ethernet, Wi-Fi, 4G BMBSEP7RP0 wired enhanced boss-micro enhanced (30 devices, 300 varibles) Ethernet BMBSEP7FP0 Wi-Fi enhanced Ethernet, Wi-Fi BMBSEP7MP0 Wi-Fi & 4G enhanced Ethernet, Wi-Fi, 4G -
제품 특징
System under control
Continuous monitoring of the status of connected devices, available from the built-in display; local and remote alarm management and parameter settings.
Plug & play
Simplified wall mounting, configuration wizard and space available for the CAREL relay module.
Independent connection
The built-in 4G modem can be used to receive alarms (SMS/email/Telegram) without relying on the local network.
Family feeling
boss micro panel retains all the monitoring and system optimisation features that defined the boss family supervisors.
CE marked product
Regulatory compliance guarantees electrical safety for operators and for the environment where the product is installed, as well as no interference with other electronic or radio devices in the vicinity.
문서
Technical
-
Certificates
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 CE Declaration for micro-boss Panel 설명 CE Declaration for micro-boss Panel 언어 ENG 날짜 06/03/2025 배포 R.0 -
Manuals
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +0300088PT 설명 boss Supervisor local para sistemas de médias e grandes dimensões 언어 POR 날짜 06/09/2022 배포 1.4 코드 +0300088DE 설명 boss: Lokale Überwachungslösung für mittelgroße und große Anlagen 언어 GER 날짜 06/09/2022 배포 1.4 코드 +0300088EN 설명 boss: Local supervisor for medium and large systems 언어 ENG 날짜 06/09/2022 배포 1.4 코드 +0300088ES 설명 boss: Supervisor local para sistemas de tamaño medio y grande 언어 SPA 날짜 06/09/2022 배포 1.4 코드 +0300088FR 설명 boss: Superviseur local pour les systèmes de taille moyenne et grande 언어 FRE 날짜 06/09/2022 배포 1.4 코드 +0300088IT 설명 boss: Supervisore locale per sistemi di medie e grandi dimensioni 언어 ITA 날짜 06/09/2022 배포 1.4 -
Quick Guide
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +040000260 설명 boss - Guida rapida - User manual - Mode d’emploi - Technisches Handbuch - Manual del usuario - Краткое руководство 언어 ENG FIN FRE GER ITA RUS SPA 날짜 23/09/2022 배포 1.2 -
Technical Leaflets
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +0500185ML 설명 BOSS-MICRO PANEL START GUIDE - Supervisory solution for small and medium installations 언어 ENG FRE GER ITA 날짜 12/02/2025 배포 1.0 코드 +0500186ML 설명 BOSS-MICRO PANEL - MECHANICAL INSTALLATION 언어 ALL 날짜 12/02/2025 배포 1.0 코드 +050003572 설명 Modulo relè per boss mini e boss micro 언어 ENG ITA 날짜 08/11/2024 배포 1.2 코드 +0500152IE 설명 μboss: Istruzioni di montaggio / Assembly procedure 언어 ENG ITA 날짜 06/07/2023 배포 1.4 코드 +0500191IE 설명 Best practices per messa in sicurezza boss range - Best security practices for the boss range 언어 ENG FRE GER ITA POR SPA 날짜 04/08/2022 배포 1.0
Commercial
-
Brochure
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +3000268PT 설명 boss micro panel - Soluções plug&play de monitoramento com tela integrada para sistemas até 30 dispositivos 언어 POR 날짜 14/03/2025 배포 1.0 코드 +3000268ES 설명 boss micro panel - Soluciones de monitorización plug&play con pantalla integrada para instalaciones de hasta 30 dispositivos 언어 SPA 날짜 14/03/2025 배포 1.0 코드 +3000268IT 설명 boss micro panel - Soluzioni plug&play di monitoraggio con display integrato per impianti fino a 30 dispositivi 언어 ITA 날짜 14/03/2025 배포 1.0 코드 +3000268EN 설명 boss micro panel - Plug&play monitoring solutions with built-in display for systems with up to 30 devices 언어 ENG 날짜 14/03/2025 배포 1.0
Images
-
High resolution images
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 PH25LBMPS2-boss-micro-panel-new 설명 CAREL boss micro panel - Local Monitoring systems - Remote management and monitoring systems 언어 ALL 날짜 19/03/2025 배포 R.0 코드 PH25LBM302-boss-micro-panel-new-detail 설명 CAREL boss micro panel - Local Monitoring systems - Remote management and monitoring systems 언어 ALL 날짜 19/03/2025 배포 R.0 코드 PH25LBM301-boss-micro-panel-new 설명 CAREL boss micro panel - Local Monitoring systems - Remote management and monitoring systems 언어 ALL 날짜 19/03/2025 배포 R.0
