MPXzero
제품 설명

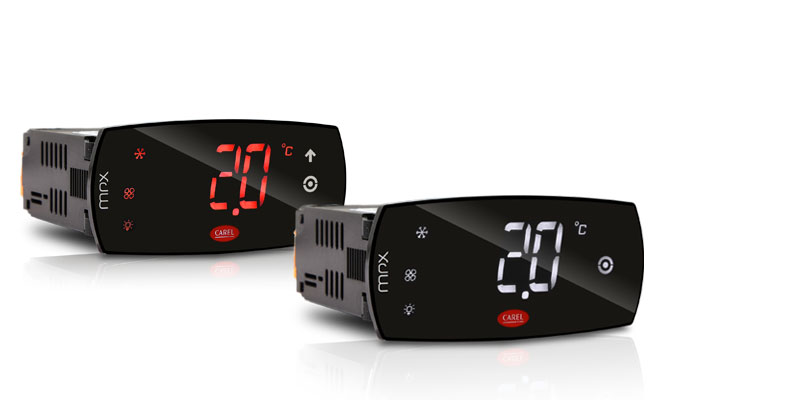

MPXzero is the series especially developed for the complete control of entry-level plug-in units or multiplexed units.
In addition to the standard management of a refrigerated cabinet (control, defrosting, fans and lights), it has the following strengths:
- the management of main/secondary local networks or VCC compressors (in frequency or serial mode);
- the ease of use of a typical plug-and-play product, without the need to add external modules;
- captivating ‘Made in Italy’ aesthetics for more modern units, both in terms of appearance and functions.

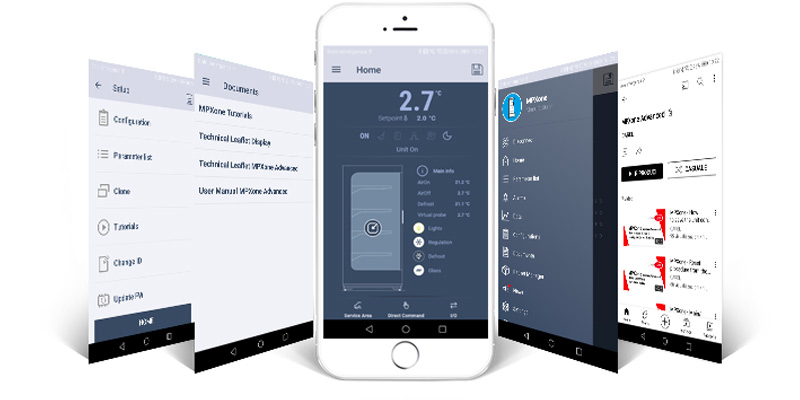

The user experience is fundamental and is always at the centre of the product. Wireless connectivity (NFC, Bluetooth) via smartphone applications extends the traditional user interface from the actual display to the user’s mobile device, simplifying day-to-day tasks.
-
제품 특징
Immediate integration into BMS systems
The BMS serial port can be used connect directly to supervisory systems, without needing an external converter.
Local network management
The Fieldbus serial port can be used to synchronise actions (such as defrosts and lights and share probes) between uniform groups of cabinets.
Management of variable-speed compressors
The plug-in unit can control a VCC compressor (in frequency or serial mode) or manage two ON/OFF compressors with an activation delay.
Touchscreen display and real-time interaction
The capacitive display, the wide viewing angle and the frameless and linear design improve the aesthetics of the units. All this, plus the app for mobile devices, make access to control information, documentation and operating conditions intuitive and immediate.
문서
Technical
-
2D/3D drawings
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 2d - 3d MPXzero Built in Small ESTRAIBILI+OPZIONE RS485 설명 2d - 3d MPXzero Built in Small ESTRAIBILI+OPZIONE RS485 언어 ALL 날짜 06/12/2021 배포 R0 -
Manuals
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +0300106RU 설명 MPXzero Электронный контроллер для холодильного оборудования 언어 RUS 날짜 29/11/2021 배포 1.0 코드 +0300106ES 설명 MPXzero Controlador electrónico para aplicaciones de refrigeración 언어 SPA 날짜 29/11/2021 배포 1.0 코드 +0300106ZH 설명 MPXzero 冷冻冷藏应用电子控制器 언어 CHI 날짜 29/11/2021 배포 1.0 코드 +0300106PL 설명 MPXzero Sterownik elektroniczny do zastosowań w chłodnictwie 언어 POL 날짜 29/11/2021 배포 1.0 코드 +0300106EN 설명 MPXzero Electronic controller for refrigeration applications 언어 ENG 날짜 29/11/2021 배포 1.0 코드 +0300106ML 설명 MPXzero Controllo elettronico per applicazioni di refrigerazione 언어 ITA 날짜 29/11/2021 배포 1.0 -
Technical Leaflets
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +0500154IE 설명 MPXzero-Vcc 언어 ENG ITA 날짜 06/03/2023 배포 2.0 코드 +0500153IE 설명 MPXzero 언어 ENG ITA 날짜 06/03/2023 배포 2.0
Commercial
-
Brochure
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +3000163DE 설명 mpx - Umfassende Konnektivität und hohe Leistungsfähigkeit für das Management von gewerblichen Kühlmöbeln 언어 GER 날짜 07/02/2023 배포 3.2 코드 +3000163IT 설명 MPX - Connettività totale e alta efficienza per la gestione completa di unità frigorifere da supermercato 언어 ITA 날짜 07/02/2023 배포 3.2 코드 +3000163PT 설명 MPXone - Conectividade total e alta eficiência para o gerenciamento completo de unidades frigoríficas de supermercados 언어 POR 날짜 07/02/2023 배포 3.2 코드 +3000163ES 설명 mpx - Conectividad total y alta eficiencia para la gestión completa de unidades de refrigeración de supermercado 언어 SPA 날짜 07/02/2023 배포 3.2 코드 +3000163PL 설명 MPXone - Pełne możliwości komunikacji i wysoka wydajność dla kompleksowego zarządzania urządzeniami chłodniczymi w supermarketach 언어 POL 날짜 07/02/2023 배포 3.2 코드 +3000163EN 설명 MPX - Total connectivity and high efficiency for the complete management of supermarket refrigeration units 언어 ENG 날짜 07/02/2023 배포 3.2 코드 +3000163ZH 설명 Total connectivity and high efficiency for multiplex showcases 언어 CHI 날짜 01/10/2018 배포 2.0 코드 +3000163RU 설명 MPXone 언어 RUS 날짜 01/10/2018 배포 2.0
Images
-
High resolution images
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 PH20LS0304-MPXzero-Frontal-red 설명 MPXzero-CAREL-Food Retail-Solutions for cabinets and cold rooms 언어 ALL 날짜 03/09/2021 배포 R.0 코드 PH20LS0302-MPXzero-red 설명 MPXzero-CAREL-Food Retail-Solutions for cabinets and cold rooms 언어 ALL 날짜 03/09/2021 배포 R.0
