Heosone
제품 설명

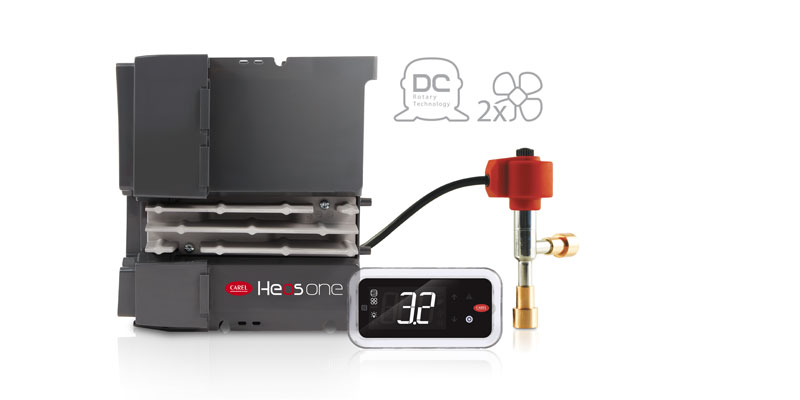

Heosone is a solution for the control and management of chest freezers and wall-standing plug-in showcase coolers for supermarkets and professional refrigerators.
The kit of components can be applied to both low temperature and medium temperature applications operating on propane.The complete package includes:
- BLDC compressor. DC technology allows greater efficiency through permanent magnet brushless motors, the widest range of modulation (25-100%), high reliability due to a reduction in electrical and mechanical stress, low noise and extremely compact dimensions.
- Control unit with integrated DC driver. All of the advantages of CAREL drivers (electrical efficiency, reliability of both the driver and the entire solution, electromagnetic compatibility) are combined with the Heosone controller to form an integrated unit for:
- cabinet temperature and superheat control
- compressor management (COP calculation, oil recovery procedures)
- condensing stage control
- lights, defrosts, fans and alarms - Electronic expansion valve with stepper motor. Operation is managed perfectly in synch with the variable-speed compressor, the evaporation temperature can be controlled continuously to ensure efficiency in all operating conditions. The use of electronic valves also allows preventive and alarm monitoring actions, for greater reliability of the entire solution.
- DC motors for EC fans. High efficiency and low noise, available for the condenser and/or evaporator.
- HMI with BLE/NFC connectivity.
The sensor and probe kit and the WiFi gateway option (serial - WiFi converter) complete the offering.
The cooling capacity varies from 0.8 kW to 1.6 kW, depending on the application, with a propane charge of up to 150 g.
Heosone can be perfectly integrated into supervisory and remote monitoring systems.-
제품 특징
Risk-free green solution
All the benefits of propane without the safety risks (charge limited to 150 g)
One stop shop
CAREL as the sole supplier and partner for the entire control package.
Usability
Advanced connectivity thanks to BLE, NFC and dedicated app
Continuous system modulation
Variable speed compressors (BLDC), electronic expansion valves with stepper motor, DC motors for fans.
Energy efficiency
The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.
Maximum food preservation quality
Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the showcases.
문서
Technical
-
2D/3D drawings
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 2d - 3d Heosone IP00 설명 2D-3D drawings IP00 언어 ALL 날짜 09/05/2022 배포 R0 코드 2d - 3d Heosone IP44 설명 2D-3D drawings IP44 언어 ALL 날짜 09/05/2022 배포 R0 -
Manuals
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +0300099IT 설명 Heosone Soluzione ad alta efficienza per unità plug-in a propano 언어 ITA 날짜 16/11/2021 배포 1.2 코드 +0300099EN 설명 Heosone High-efficiency solution for propane plug-in units 언어 ENG 날짜 16/11/2021 배포 1.2 -
Technical Leaflets
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +050002740 설명 Heosone Soluzione ad alta efficienza per unità plug-in a propano High-efficiency solution for propane plug-in units 언어 ENG ITA 날짜 16/11/2021 배포 1.2 코드 +050002742 설명 Heosone Энергоэффективное решение для пропановых установок High-efficiency solution for propane plug-in units 언어 ENG RUS 날짜 16/11/2021 배포 1.2
Commercial
-
Brochure
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +3000217IT 설명 Heosone - Soluzione ad alta efficienza per unità plug-in a propano 언어 ITA 날짜 19/03/2021 배포 1.0 코드 +3000217EN 설명 Heosone - High-efficiency solution for propane plug-in units 언어 ENG 날짜 19/03/2021 배포 1.0
Images
-
High resolution images
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 PH20LUP305-Heos-One-IP20-44 설명 Heosone-CAREL-Food Retail-Plug-in and semi plug-in 언어 ALL 날짜 03/09/2021 배포 R.0 코드 PH20LUP303-Heos-One-IP00 설명 Heosone-CAREL-Food Retail-Plug-in and semi plug-in 언어 ALL 날짜 03/09/2021 배포 R.0
