pGDN

pGDN

  • 제품 설명

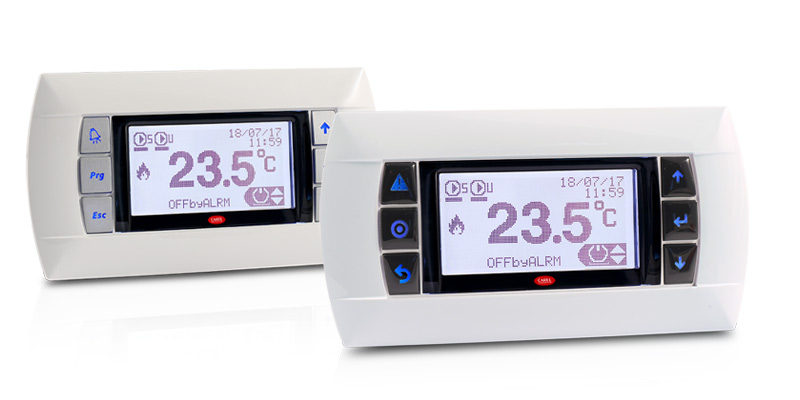

    The pGDN semi-graphic terminals are part of the range of pCO sistema user interfaces designed to offer higher versatility and extensive customisation possibilities. When designing these terminals, CAREL focused special attention on simplicity of programming and the quality of performance, while maintaining a high aesthetic standard. The terminals have a 132x64 pixel backlit WHITE display and a 6-button keypad.
    pGDN features a keypad that repeats the symbols used on the pCO5+/pCO5+HS/c.pCO controllers.
    These terminals can display graphic symbols of various sizes and the main international alphabets, and feature the flexibility and ease of customisation that is the basis for the design of the CAREL pCO/c.pCO sistema family products, offering more demanding customers several customisation possibilities at affordable costs, even for limited quantities. Connection to the pCO controller is available over the RS485 network using the pLAN protocol.

  • 제품 특징

    New hardware

    PGN use a full new generation of microprocessors and LCD drivers.

    Higher alarm visibility

    Thanks to the dual-color alarm keys, the alarming indication is much easier to see.

    Preserve backward compatibility

    The code replacement is fully guaranteed by the HW and SW backward compatibility with pGD0 and pGD1/E.











문서

Technical

  • 2D/3D drawings
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 2d-3d pGD1 panel

    		 설명 2D-3D drawings

    		 언어 ALL

    		 날짜 14/01/2014

    		 배포 R0

  • Technical Leaflets
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 +05C001425

    		 설명 pGN0 / pGN1 / pGNE pCO 图形显示手操器 / pCO Graphic Display

    		 언어 CHI  ENG

    		 날짜 13/04/2023

    		 배포 1.3

    코드 +050001425

    		 설명 pGN0 / pGN1 / pGNE pCO display grafico / pCO Graphic Display

    		 언어 ENG  ITA

    		 날짜 13/04/2023

    		 배포 1.3


Commercial

  • Other related documentation
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 +800004036

    		 설명 Rozwiązania dla central wentylacyjno-klimatyzacyjnych (AHU) - Technologia, doświadczenie i oszczędność energii dla jakości powietrza w pomieszczeniach

    		 언어 POL

    		 날짜 05/04/2023

    		 배포 1.2

    코드 +800004031

    		 설명 Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    		 언어 ENG

    		 날짜 05/04/2023

    		 배포 1.2

    코드 +800004030

    		 설명 Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    		 언어 ITA

    		 날짜 05/04/2023

    		 배포 1.2


Images

  • High resolution images
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 PH17LPG301-pGDN

    		 설명 pGDN-CAREL-TerminalsUnit-Terminals

    		 언어 ALL

    		 날짜 01/09/2021

    		 배포 R.0
