humiSonic ventilation

UU*D*
humiSonic ventilation
humiSonic ventilation humiSonic ventilation

  • 제품 설명

    humiSonic for air handling units makes adiabatic humidification available to smaller ducting systems, offering a high energy efficiency alternative to steam humidification.

    Energy consumption per kg of evaporated water is in fact 90% lower than with steam!

    Installed directly in the air flow, humiSonic can atomise water into very small droplets (5 µm on average), which are instantly absorbed.

    The new generation humiSonic embodies all the attention that CAREL has always paid to the hygiene of its humidification solutions. All components in contact with the water are made from stainless steel, and not water is left to stagnate in the main body at the end of the humidification cycle. In addition, the electronic controller manages periodical washing cycles when the system is not running.

    These hygiene features, together with the very high precision that humiSonic can achieve (±1% around the relative humidity set point), make it an ideal solution even for more critical and delicate applications, such as cleanrooms.

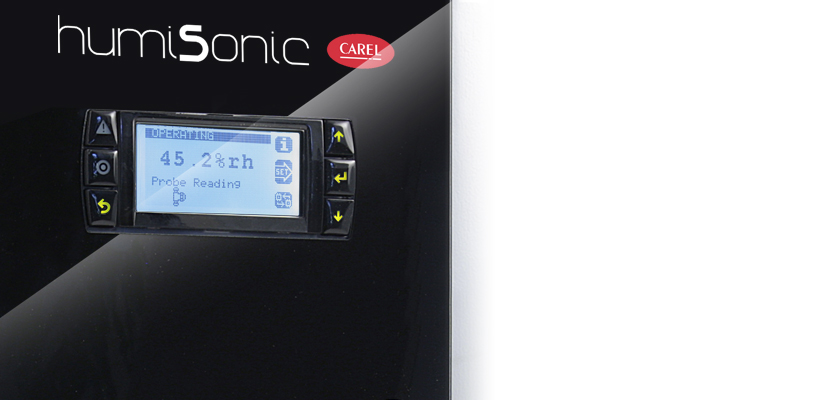

    humiSonic for air handling units comprises two elements that make it a powerful and complete solution: the main body (containing the piezoelectric transducers) and the electrical power supply and control panel.

  • 제품 특징

    humiSonic for ducts enjoys all the benefits of ultrasound technology, plus additional new improvements developed by CAREL:

    • energy saving: just 10% of the power consumption of steam humidifiers;
    • reliability: 10,000 hours of uninterrupted operation guaranteed;
    • precision: relative humidity control of ±1% on the set point;
    • absorption efficiency: the droplets, just 5 µm in size, evaporate instantly;
    • complete solution: electrical and control panel together, everything humiSonic for ducts needs to start operating;
    • hygiene: stainless steel components, no water recirculation and periodical washing cycles.


문서

Technical

  • Manuals
    코드 설명 언어 날짜 * 배포
    코드 +0300063ES

    설명 HUMISONIC Humidificadores por ultrasonidos versión ventilación - conducto

    언어 SPA

    날짜 20/03/2018

    배포 1.2

    코드 +0300063RU

    설명 HUMISONIC Ультразвуковые увлажнители для воздуховодов (канальные)

    언어 RUS

    날짜 20/03/2018

    배포 1.2

    코드 +0300063PT

    설명 Umidificadores de ultrassons versão ventilation - duto

    언어 POR

    날짜 20/03/2018

    배포 1.2

    코드 +0300063DE

    설명 Ultraschallvernebler Version für Luftbehandlungsgeräte - Luftkanäle

    언어 GER

    날짜 20/03/2018

    배포 1.2

    코드 +0300063SV

    설명 Ultraljudsbefuktare version ventilation – kanal

    언어 SWE

    날짜 20/03/2018

    배포 1.2

    코드 +0300063FR

    설명 Ultrasonic humidifiers version ventilation - conduite

    언어 FRE

    날짜 20/03/2018

    배포 1.2

    코드 +0300063EN

    설명 Ultrasonic humidiers ventilation - duct version

    언어 ENG

    날짜 20/03/2018

    배포 1.2

    코드 +0300063IT

    설명 Umidificatori a ultrasuoni versione ventilation - condotta

    언어 ITA

    날짜 20/03/2018

    배포 1.2

  • BIM files
    코드 설명 언어 날짜 * 배포
    코드 BIM files humiSonic ventilation

    설명

    언어 ALL

    날짜 11/03/2020

    배포 R0


Commercial

  • Brochure
    코드 설명 언어 날짜 * 배포
    코드 +3000103ES

    설명 humiSonic Humidificadores adiabáticos por ultrasonidos

    언어 SPA

    날짜 31/10/2019

    배포 2.0

    코드 +3000103DE

    설명 humiSonic Adiabatische Ultraschallvernebler

    언어 GER

    날짜 31/10/2019

    배포 2.0

    코드 +3000103FR

    설명 humiSonic Humidificateurs adiabatiques à ultrasons

    언어 FRE

    날짜 31/10/2019

    배포 2.0

    코드 +3000103EN

    설명 humiSonic Adiabatic ultrasonic humidifiers

    언어 ENG

    날짜 31/10/2019

    배포 2.0

    코드 +3000103IT

    설명 humiSonic: Umidificatori adiabatici a ultrasuoni

    언어 ITA

    날짜 31/10/2019

    배포 2.0

    코드 +3000176EN

    설명 On show at Chillventa 2018

    언어 ENG

    날짜 01/10/2018

    배포 1.0

    코드 +3000106EN_chillventa

    설명 On Show - Chillventa 2016

    언어 ENG

    날짜 08/10/2016

    배포 2.0

    코드 +3000103ZH

    설명 humiSonic 绝热式超声波加湿器

    언어 CHI

    날짜 01/11/2015

    배포 1.0
