  • 제품 설명

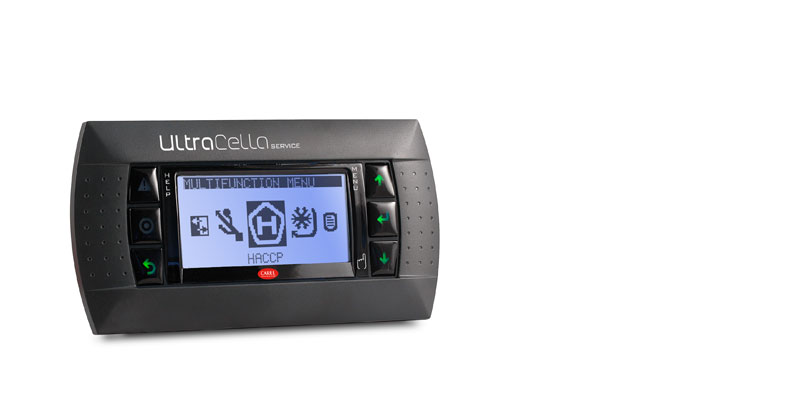

    UltraCella is a cold room front panel with 6 relays, USD data logging function and humidity management logic. It can be combined with up to 2 EVD modules for managing 2 EEVs, and/or power modules to increase power or manage three-phase loads



    I/O configuration:

    • 6 relay outputs (2HP compressor, 2HP defrost, 16A evaporator fans, 16A lights and 2 x 8A auxiliary relay outputs for additional functions);
    • 5 analogue inputs (3 x NTC / NTC HT / PT1000 + 1 x NTC / NTC HT / 0-10V + 1 x 4-20mA / 0-5Vrat);
    • 3 digital inputs;
    • 2 built-in RS485 serial lines: - BMS: CAREL protocol (Slave) for supervisors - Fieldbus: Modbus protocol (Master) for connection to EVD expansion module and/or remote 3ph panels;
    • Humidity reading and control by external CAREL humidifier.



    UltraCella meets the needs of all cold room users, in all stages: from installation to commissioning for installers, everyday use for end users.



    Installation
    Installers can take advantage of these new features:

    • DIN rail for fast wall mounting;
    • More GND terminals available for probes and sensors, 230Vac relays for compressor, defrost and evaporator fans and large 7.5mm terminals;
    • 180° “fold out” controller opening.



    Commissioning
    Installers can reduce commissioning times thanks to:

    • Configuration via wizard, available on pGD1 Service (optional);
    • With UltraCella only, 10 different pre-set configurations are available as standard, for the main types of applications (CO2, double evaporator management, etc.);
    • Download/upload configurations via USB port



    Daily use
    Interaction with the electronic controller has never been so simple for end users, thanks to:

    • HACCP reports available via USB port in an easy-to-analyse CSV file;
    • Intuitive built-in HMI with large display and contextual help.



    The powerful electronics and innovative mechanical architecture allow:

    • Seamless addition of new features (add-on and remote);
    • Just one main controller to manage all upgrade features;
    • Reduced stock management for customers;
    • An “open” platform that is ready for development of future features.



    Modularity
    UltraCella and SmartCella share a modular platform. This is easily expandable and upgradable with additional contents thanks to the new modular mechanical concept.
    The module can be mounted directly on a DIN rail or pre-assembled for wall mounting, thanks to special plastic inserts and three wide bypass holes for convenient and safe wiring, while guaranteeing IP65 on the complete enclosure.
    A wide range of modules is available: up to 2 EVD modules that can drive 2 EEVs for independent management of 2 evaporators, and full three-phase load management.


    HACCP
    UltraCella is compliant with HACCP International for food safety – a first in Italy for this family of electronic devices for refrigeration equipment – guaranteeing its suitability to ensure the quality of preserved food.


  • 제품 특징

    The powerful platform allows the connection of more sensors and loads than other standard solutions, and manages these using optimised and advanced algorithms for total control of the cold room.



    • Installation
      Installers can take advantage of fast wall mounting, wide space for terminals and 180° “fold out” controller opening
    • Commissioning
      Faster start-up thanks to the configuration wizard and several pre-set configurations
    • Daily use
      Interaction with the electronic controller has never been so simple for end users, with a large, intuitive HMI
    • Modularity
      UltraCella is a modular platform. It is easily expandable and upgradable with additional contents, such as 2 EVD drivers to control up to 2 EEVs for evaporator management
    • HACCP
      UltraCella is compliant with HACCP International for food safety
