c.pCOe

c.pCOe

  • 제품 설명

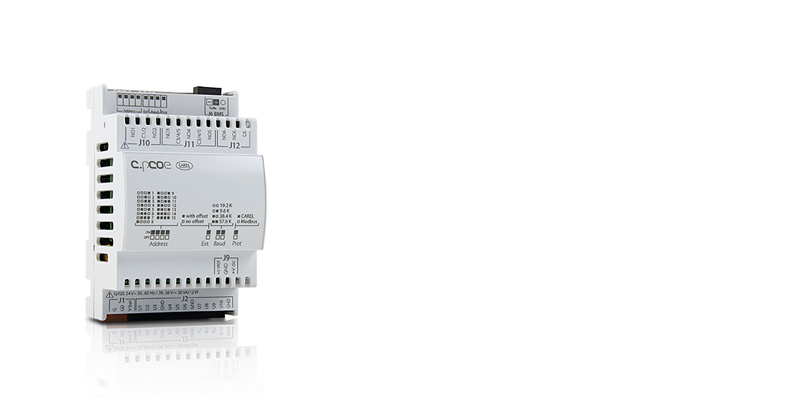

    c.pCOe is the I/O expansion card, built using with CAREL-proprietary microchip, that allows considerable flexibility in the configuration of the various pins, both as inputs (support for passive NTC, PTC, PT1000 probes, digital inputs and active voltage and current probes) and as outputs (0-10 V, PWM).

    The c.pCOe card is available in 2 versions:

    • Basic version, with a total of 16 I/O channels available, 10 of which can be configured as analogue inputs or outputs, and 6 relays.
    • Enhanced version, same I/O configuration as the basic version, with the addition of a built-in driver for managing a CAREL unipolar electronic expansion valve.

  • 제품 특징
    • DIN rail mounting (4 DIN)
    • 10 universal channels (inputs/outputs)
    • 6 relays
    • 24 Vac/Vdc power supply
    • Integrated RS485 port
    • c.Suite and 1tool libraries for rapid integration
    • Built-in unipolar EXV driver (Enhanced version)
    • Ultracap module support (Enhanced version)


문서

Technical

  • 2D/3D drawings
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 2d-3d cpCOe

    		 설명 2D-3D drawings

    		 언어 ALL

    		 날짜 01/12/2016

    		 배포 R0

  • Manuals
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 +0300057EN

    		 설명 c.pCO Programmable Controller

    		 언어 ENG

    		 날짜 20/06/2023

    		 배포 1.6

  • Technical Leaflets
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 +0500059IE

    		 설명 P+E*: c.pCOe – Espansione controllo programmabile / Programmable controller expansion

    		 언어 ENG  ITA

    		 날짜 14/02/2022

    		 배포 1.4

    코드 +0500059FR

    		 설명 P+E*: c.pCOe – Expansion commande programmable / Programmable controller expansion

    		 언어 ENG  FRE

    		 날짜 14/02/2022

    		 배포 1.4


Images

  • High resolution images
    * Entries are ordered by date
    코드 설명 언어 날짜 * 배포
    코드 PH16LP+305-cpCOe-enhanced

    		 설명 c.pCOe-CAREL-Programmable Controls-I/O expansions

    		 언어 ALL

    		 날짜 02/09/2021

    		 배포 R.0
