pCOe DI
제품 설명

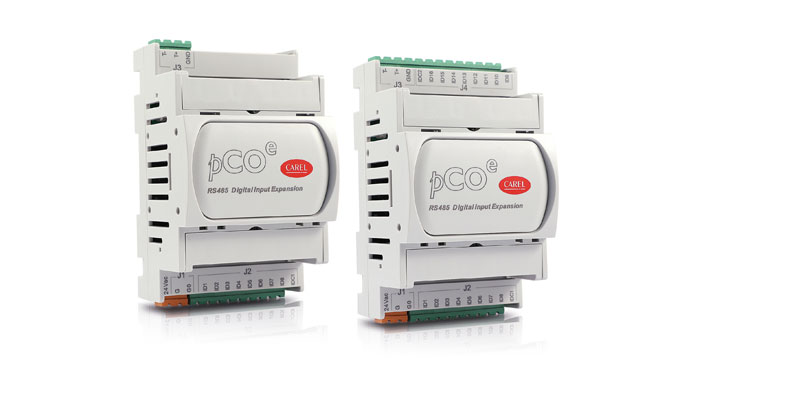

pCOe DI is the I/O expansion card developed by CAREL to extend the number of digital inputs in a solution. The expansion features both voltage-free and fast contact digital inputs.
The pCOe DI card is available in 2 versions:- Version with 8 digital inputs
- Version with 16 digital inputs
-
제품 특징
- DIN rail mounting (4 DIN)
- Up to 16 digital inputs (voltage-free or fast contact)
- 24 Vac/Vdc power supply
- Integrated RS485 port
- Modbus protocol
문서
Technical
-
2D/3D drawings
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 pCOE fast DI 설명 2D-3D drawings 언어 ALL 날짜 08/04/2024 배포 R.0 -
Technical Leaflets
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 +050003271 설명 pCOE: I/O scheda di espansione UXPB******2** 24 Vac / I/O expansion board UXPB******2** 24 Vac 언어 ENG ITA 날짜 03/09/2021 배포 1.3
Images
-
High resolution images
* Entries are ordered by date
코드 설명 언어 날짜 * 배포 코드 PH21LPC301-pCOe-8 설명 pCOe DI-CAREL-Programmable ControlsI-/O expansions 언어 ALL 날짜 02/09/2021 배포 R.0 코드 PH21LPC302-pCOe-16 설명 pCOe DI-CAREL-Programmable Controls-I/O expansions 언어 ALL 날짜 02/09/2021 배포 R.0
