E2V - B/U/S (phase out)

E2V-B; E2V-U; E2V-S
E2V - B/U/S (phase out)
E2V - B/U/S (phase out) E2V - B/U/S (phase out)

  • 제품 설명

    The E2V-B and E2V-U expansion valves are currently being phased out. The equivalent replacement in terms of both performance and dimensions is the E2V-F.

    The E2V-S expansion valves are currently being phased out. The equivalent replacement in terms of both performance and dimensions is the E2V-Z.

    The CAREL E2V electronic expansion valves for low capacity applications combine high reliability and precise control, guaranteed by the equal percentage characteristic of the movable element and the 15 mm stroke without axial rotation.
    The wide range available can cover all applications that require cooling capacities up to 40 kW. The possibility of operation with fluid flow in both directions is especially useful when the valve is used for heat pump applications, moreover simplifying refrigerant circuit layout and reducing installation costs. Fitted on all sizes, the Teflon gasket on the movable element guarantees perfect tightness on closing.
    The E2V-B valve is made using high quality laser welding and premium grade materials, such as AISI 316; these characteristics ensures perfect tightness on closing. The valve is supplied fully assembled and ready for use, to simplify system installation and commissioning and to reduce related costs.



문서

Technical

  • Technical Leaflets
    코드 설명 언어 날짜 * 배포
    코드 +050001441

    설명 E2V-U - Valvola di espansione elettronica / Electronic expansion valve / Elektroniczny zawór rozprężny / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    언어 POL

    날짜 07/02/2022

    배포 5.0

    코드 +050001440

    설명 E2V-U - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    언어 ENG  FRE  GER  ITA

    날짜 07/02/2022

    배포 5.0

    코드 +050000341

    설명 E2V - Valvola di espansione elettronica / Electronic expansion valve / Soupape à détente électrique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    언어 ENG  FRE  GER  ITA  SPA

    날짜 07/02/2022

    배포 5.4

    코드 +050001465

    설명 E2V-S Unipolar - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    언어 ENG  FRE  GER  ITA  SPA

    날짜 22/07/2021

    배포 3.6

    코드 +050001460

    설명 E2V-S - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / Válvula de expansión electrónica

    언어 ENG  FRE  GER  ITA  SPA

    날짜 22/07/2021

    배포 3.6

    코드 +05C000341

    설명 E2V - Valvola di espansione elettronica / Electronic expansion valve / Soupape à détente électrique / Elektronisches Expansionsventil / 电子膨胀阀

    언어 CHI  ENG  FRE  GER  ITA

    날짜 15/02/2013

    배포 4.0

    코드 +05C001460

    설명 E2V-S - E2V-S - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / 电子膨胀阀

    언어 CHI  ENG  FRE  GER  ITA

    날짜 28/09/2012

    배포 3.0

    코드 +05C001465

    설명 E2V-S Unipolar - Valvola di espansione elettronica / Electronic expansion valve / Détendeur électronique / Elektronisches Expansionsventil / 电子膨胀阀

    언어 CHI  ENG  FRE  GER  ITA

    날짜 28/09/2012

    배포 3.0


Images

  • High resolution images
    코드 설명 언어 날짜 * 배포

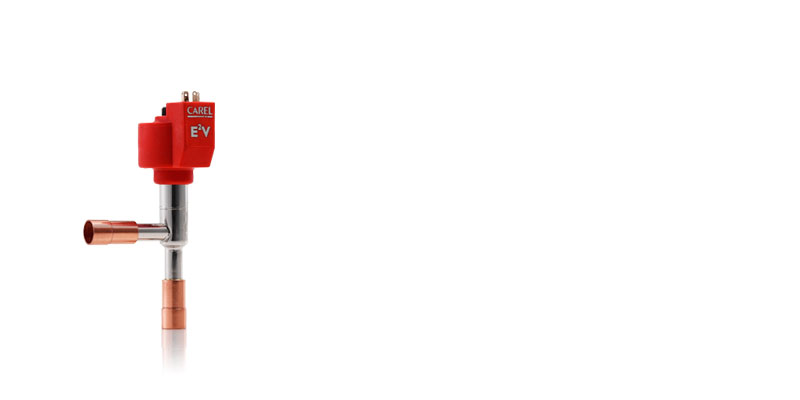

    코드 PH13LE2301-E2V

    설명 CAREL E2V - B/U/S (phase out) - Electronic expansion valve - ExV - EEV Technology

    언어 ALL

    날짜 11/03/2022

    배포 R.0

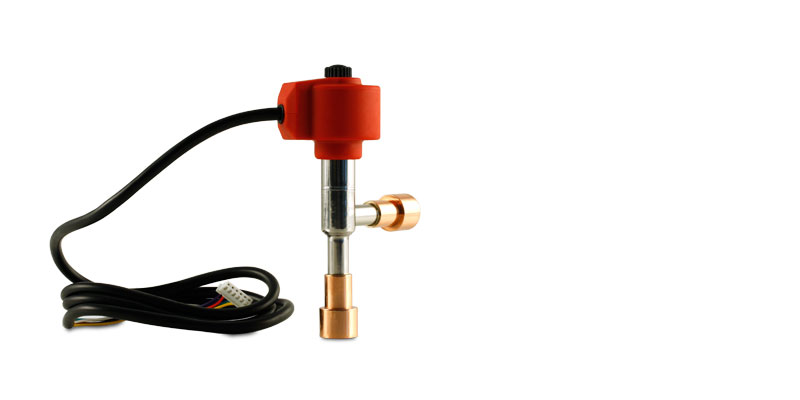

    코드 PH08LE2302-E2V-unipolar

    설명 CAREL E2V - B/U/S (phase out) - Electronic expansion valves - ExV - EEV Technology

    언어 ALL

    날짜 11/03/2022

    배포 R.0
