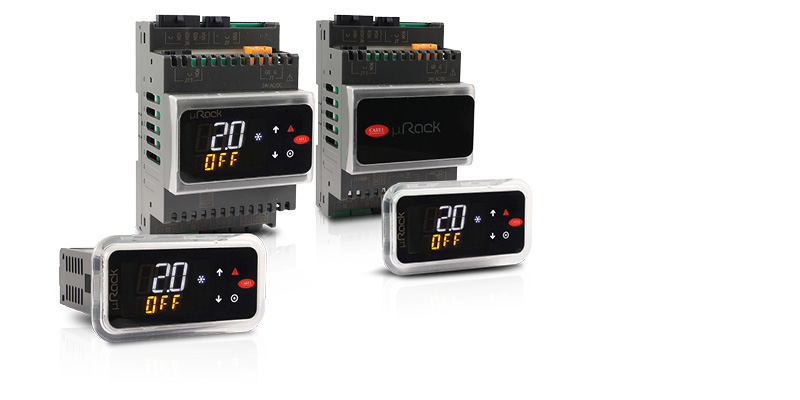

µRack

U20R00MRK0*
µRack
  • 제품 설명

    uRack is the CAREL controller for condensing units and compact compressor racks operating with HFCs and HFOs. The completely new and upgraded hardware platform places the focus firmly on connectivity. Indeed, all uRack functions can be configured directly in the Applica app on your smartphone, connected the controller via Bluetooth or NFC. Two compressor lines (with up to 4+2 compressors), energy saving options (floating condensing stage control, compressor and fan modulation), compressor protection against liquid return and generic functions that can be set directly in the palm of your hand using the Applica app: everything can be easily configured via a user interface that simplifies unit configuration and commissioning in the field.
    Completing the connectivity options is a BMS port, available on the entire range, for connection to supervisory systems.

  • 제품 특징

    Complete management of the compressor rack or condensing unit

    Energy saving functions, compressor protection from liquid return, up to two suction lines with 4 and 2 compressors respectively, up to 4 condenser fans.

    Simplified unit configuration

    Configuration wizard to guide the user, intuitive interface in the Applica app connected to the controller via BLE or NFC.

    Versatile controller

    Compact dimensions, with panel or DIN rail mounting, suitable for various applications such as condensing units and compressor racks.

    Built-in supervisor connection

    Thanks to the BMS port available on the entire range.



문서

Technical

  • Technical Leaflets
    코드 설명 언어 날짜 * 배포
    코드 +0500149IE

    설명 ACU product technical leaflet Controllo elettronico / Electronic control

    언어 ENG  ITA

    날짜 19/09/2022

    배포 1.7


Commercial

  • Brochure
    코드 설명 언어 날짜 * 배포
    코드 +3000233EN

    설명 μRack - Solution for condensing units and compact compressor racks

    언어 ENG

    날짜 18/10/2022

    배포 1.1

    코드 +3000233IT

    설명 μRack - Soluzione per moto-condensanti e centrali frigorifere compatte

    언어 ITA

    날짜 18/10/2022

    배포 1.1


Images

  • High resolution images
    코드 설명 언어 날짜 * 배포
    코드 PH21LPR307-µRack-range

    설명 CAREL µRack range - Compressor rack - Food Retail

    언어 ALL

    날짜 08/11/2022

    배포 R.0

    코드 PH21LPR304-µRack-DIN-no-buitin

    설명 CAREL µRack DIN-no-buitin - Compressor rack - Food Retail

    언어 ALL

    날짜 08/11/2022

    배포 R.0

    코드 PH21LPR303-µRack-DIN-builtin

    설명 CAREL µRack DIN-buitin - Compressor rack - Food Retail

    언어 ALL

    날짜 08/11/2022

    배포 R.0

    코드 PH21LPR305-µRack-range

    설명 CAREL µRack range - Compressor rack - Food Retail

    언어 ALL

    날짜 08/11/2022

    배포 R.0

    코드 PH21LPR302-µRack-panel

    설명 CAREL µRack panel - Compressor rack - Food Retail

    언어 ALL

    날짜 08/11/2022

    배포 R.0
